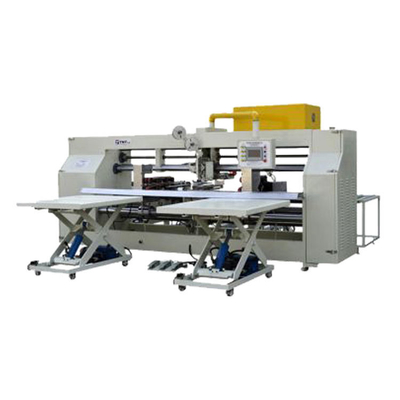

Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length

Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length
Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length

Grote Afbeelding :  Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length

Productdetails:
Place of Origin: china
Merknaam: hh
Model Number: 2000
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Negotiated
Verpakking Details: Plastic
Levertijd: 5-8 dagen
Betalingscondities: T/t
Contact

Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length

beschrijving
Het stikken Methode: Naaien met kettingsteek Procesbord Qty: Een stuk
Werksnelheid: 120 nagels Oorsprong: Hebeiprovincie
Het stikken Breedte: Aanpasbaar Grootte van de vorm: 3500*1700*1550 mm
Spijkerafstand: 30-120 mm Electricsmerk: Schneider / omron / chint / weinview
Markeren:

450mm carton box stitching machine

,

carton box stitcher 1-5mm thickness

,

heavy-duty carton stitching machine with warranty

Upgrade 450mm Maximum Flap Size Carton Box Stitching Machine 1-5mm Stitch Thickness and Length
Product Features
  • Servo drive for precision operation with reduced mechanical transmission parts, effectively lowering failure rates
  • Weilun touch screen interface for easy adjustment of parameters (nail distance, nail count, nail type, backboard)
  • Complete PLC control system for reliable operation
  • Rear electric baffle with stepping motor drive for accurate and fast size conversion
  • All relays manufactured by Chit for consistent performance
  • Chit brand photoelectric and proximity switches
  • Bottom die blade constructed from Japanese tungsten steel for exceptional wear resistance
  • Complete set of nail heads made from special steel with computer gong precision processing
  • Versatile stitching options: single (/), double (//), and reinforcing stitching (// // // // /) to meet diverse customer requirements
  • Rapid carton size changeover (1 minute) with easy stitching distance adjustment
  • Front feeding section features automatic counting and photoelectric induction for automatic rise during feeding
  • Back section includes automatic counting with stacking capability (2-99 pieces) for convenient packing and binding
  • High-speed operation: 800 nailing/min
  • Adjustable stitching distance: 30-130mm
  • Electric adjustment of paper press rubber wheel clearance
  • Machine order type adjustment with capacity to store 100 orders
Technical Specifications
No Component Name Brand Origin Note
1 The Head Servo Motor Ourui
2 Feeding Paper Servo Motor Ourui
3 PLC Omron
4 Contactor and Circuit Schneider
5 Reducer Taiwan
6 Reducer China Hangzhou
7 Photoelectric, Proximity Switch Omron
8 Touch Screen China Shanghai
9 Intermediate Relay Omron
10 Bearing Renben China
11 Nail Head (Complete Set) China Guangdong
12 The Blade/Bottom Die Die Steel Japan
13 Synchronizing Wheel/Belt Eurovishion German/Ximen
14 Cylinder, Solenoid Valve Xingchen/Airtac China
